TL40H200, Timing Pulley

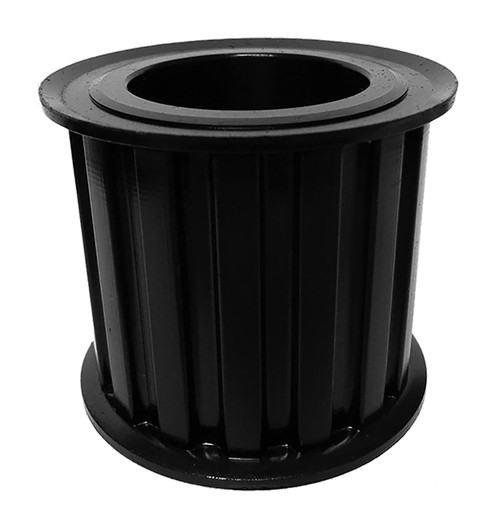

TL40H200 - Cast Iron Imperial Pitch Pulleys

TL40H200

TL40H200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

TL40H200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL40H200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL40H200
Teeth 40
Tooth Style H
For Belt Width (in) 2.0000
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 6.366
Outside Diameter (in) 6.312
Flange Diameter (in) 6.600
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 2517
P.D. (mm) 162.00
O.D. (mm) 160.30
MOQ 1
Weight (lb) 15.01
Part Number Cross Reference TL40H200, TB40H200, 40 H 200 TL, TL40H200-2517 DYNA-SYNC SPKT, TL40H200, TL40H200, TB 40-H-200, P40H200-2517, TL40H200, 113728, TL40H200

Comparable to: TL40H200, TB40H200, 40 H 200 TL, TL40H200-2517 DYNA-SYNC SPKT, TL40H200, TL40H200, TB 40-H-200, P40H200-2517, TL40H200, 113728, TL40H200

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
