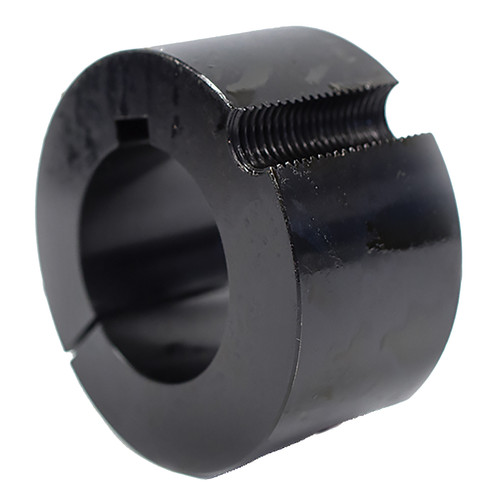

3020x2, TL Bushing

3020x2, 3020X2, TL3020 X 2.00, 20352958

3020x2

3020x2, TL Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries 3020x2 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number	3020x2
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore (in)	2.000
Bore Description	2 Inch Finished Bore
Min. Bore (in)	0.875
Unit System	Inch
Bushing	3020
A (in)	4.250
B (in)	2.000
C (in)	6.250
D (in)	4.000
Torque Capacity (lb/in)	24,000
Bolt Circle (in)	4.000
MOQ	1
Weight (lb)	5.10
Part Number Cross Reference	3020 2., 3020 X 2, 3020X2, TL3020 X 2.00, 20352958, 3020 X 2-KW BUSHING, TL30202, 3020X2, 3020X2, 3020X2, 3020X2, 3020X2, 3020x2, 117118, 3020x2
Set Screw Quantity	2

Related Products

Comparable to: 3020 2., 3020 X 2, 3020X2, TL3020 X 2.00, 20352958, 3020 X 2-KW BUSHING, TL30202, 3020X2, 3020X2, 3020X2, 3020X2, 3020X2, 3020x2, 117118, 3020x2
