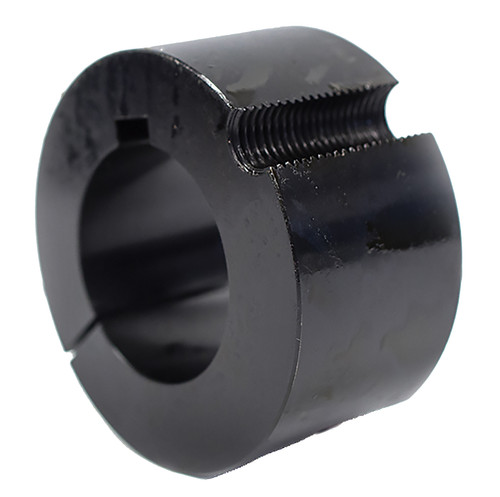

3020x3, TL Bushing

3020x3, 3020X3

3020x3

3020x3, TL Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries 3020x3 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number 3020x3
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 3.000
Bore Description 3 Inch Finished Bore
Min. Bore (in) 0.875
Unit System Inch
Bushing 3020
A (in) 4.250
B (in) 2.000
C (in) 6.250
D (in) 4.000
Torque Capacity (lb/in) 24,000
Bolt Circle (in) 4.000
MOQ 1
Weight (lb) 3.09
Part Number Cross Reference 3020 3., 3020 X 3, 3020X3, TL3020 X 3 BUSHING QUOTE, 20950437, 3020 X 3-KW BUSHING, TL30203, 3020X3, 3020X3, 3020X3, 3020X3, 3020X3, 3020x3, 117134, 3020x3
Set Screw Quantity 2

Related Products

Comparable to: 3020 3., 3020 X 3, 3020X3, TL3020 X 3 BUSHING QUOTE, 20950437, 3020 X 3-KW BUSHING, TL30203, 3020X3, 3020X3, 3020X3, 3020X3, 3020X3, 3020x3, 117134, 3020x3
