3020x65mm, TL Bushing

3020x65mm

3020x65mm

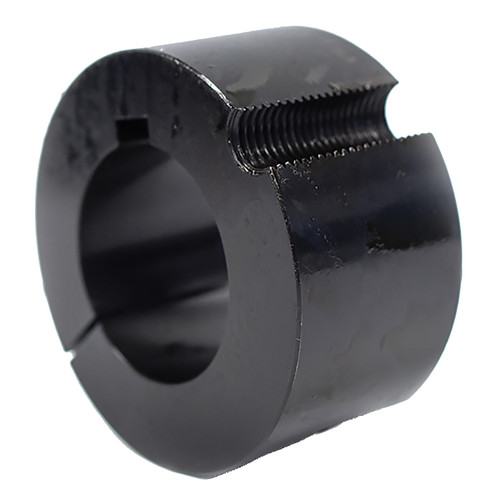

3020x65mm, TL Bushing, C45 Steel, Black Oxide

B&B Manufacturing carries 3020x65mm Taper Lock Bushings in a large variety of bore sizes from stock.

Specifications

Product Number 3020x65mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore Description 65 mm Finished Bore
Bore (mm) 65.00
Unit System Metric
Bushing 3020
A (in) 4.250
B (in) 2.000
C (in) 6.250
D (in) 4.000
Torque Capacity (lb/in) 24,000
Bolt Circle (in) 4.000
MOQ 1
Weight (lb) 4.10
Part Number Cross Reference 3020 65MM, 3020 X 65MM-KW BUSHING, TL302065MM, 3020X65MM, 3020x65mm, 119648, 3020x65mm
Set Screw Quantity 2

Related Products

Comparable to: 3020 65MM, 3020 X 65MM-KW BUSHING, TL302065MM, 3020X65MM, 3020x65mm, 119648, 3020x65mm
