4040x4, TL Bushing

4040x4, TL4040 X 4.00, 20353031

Product Details for 4040x4

Comparable to: 4040 4., 4040.4, TL4040 X 4.00, 20353031, 4040x4kw, TL40404, 4040-4, N/A

Click to Enlarge

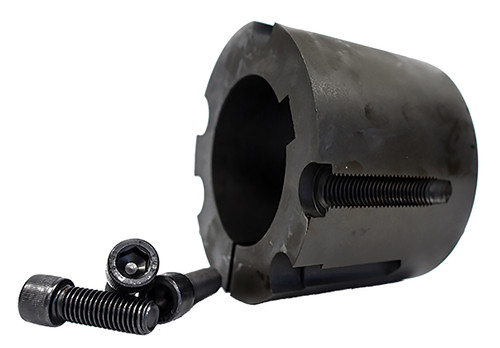

4040x4, TL Bushing, C45 Steel, Black Oxide,

Learn more about 4040x4 TL Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 4040x4
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 4 Inch Finished Bore
Min. Bore (in) 1.4375
Unit System Inch
Bushing 4040
A (in) 5.750
B (in) 4.000
C (in) 8.500
D (in) 5.540
G (in) 40
Torque Capacity (lb/in) 77,300
Bolt Circle (in) 5.540
MOQ 1
Weight (lb) 20.00
Part Number Cross Reference 4040 4., 4040.4, TL4040 X 4.00, 20353031, 4040x4kw, TL40404, 4040-4, N/A
Set Screw Quantity 3
