4535x3, TL Bushing

4535x3

4535x3

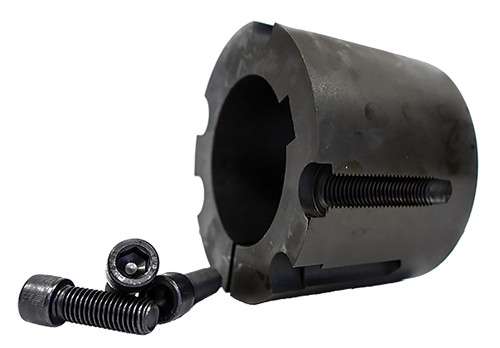

4535x3, TL Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries 4535x3 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number 4535x3
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 3.000
Bore Description 3 Inch Finished Bore
Min. Bore (in) 1.9375
Unit System Inch
Bushing 4535
A (in) 6.375
B (in) 3.500
C (in) 9.500
D (in) 6.125
G (in) 40
Torque Capacity (lb/in) 110,000
Bolt Circle (in) 6.130
MOQ 1
Weight (lb) 24.90
Part Number Cross Reference 4535 3., TL4535 X 3.0 BUSHING, 21004246, 4535 X 3-KW BUSHING, TL45353, 4535X3, 4535x3, 114782, 4535x3
Set Screw Quantity 3

Related Products

Comparable to: 4535 3., TL4535 X 3.0 BUSHING, 21004246, 4535 X 3-KW BUSHING, TL45353, 4535X3, 4535x3, 114782, 4535x3
