4535x4, TL Bushing

4535x4

Product Details for 4535x4

Comparable to: 4535 4., 4535.4, TL4535 X 4.0 BUSHING, 21004260, 4535x4kw, TL45354, 4535-4, 114791

Click to Enlarge

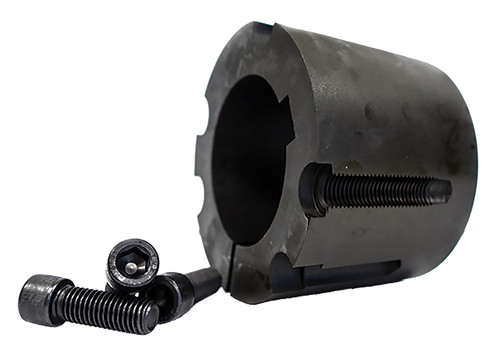

4535x4, TL Bushing, C45 Steel, Black Oxide,

Learn more about 4535x4 TL Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 4535x4
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 4 Inch Finished Bore
Min. Bore (in) 1.9375
Unit System Inch
Bushing 4535
A (in) 6.375
B (in) 3.500
C (in) 9.500
D (in) 6.125
G (in) 40
Torque Capacity (lb/in) 110,000
Bolt Circle (in) 6.130
MOQ 1
Weight (lb) 19.60
Part Number Cross Reference 4535 4., 4535.4, TL4535 X 4.0 BUSHING, 21004260, 4535x4kw, TL45354, 4535-4, 114791
Set Screw Quantity 3
