4545x3, TL Bushing

4545x3, TL4545 X 3.00, 20353041

Product Details for 4545x3

Comparable to: 4545 3., 4545.3, TL4545 X 3.00, 20353041, 4545x3kw, TL45453, 4545-3, N/A

Click to Enlarge

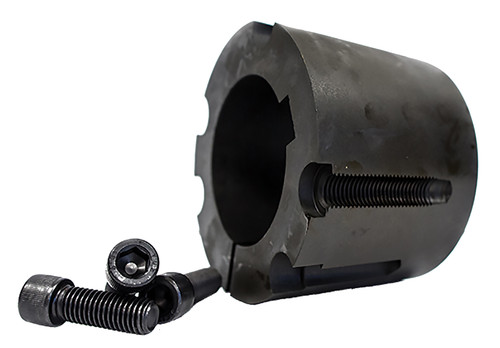

4545x3, TL Bushing, C45 Steel, Black Oxide,

Learn more about 4545x3 TL Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 4545x3
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 3 Inch Finished Bore
Min. Bore (in) 1.9375
Unit System Inch
Bushing 4545
A (in) 6.375
B (in) 4.500
C (in) 9.500
D (in) 6.125
G (in) 40
Torque Capacity (lb/in) 110,000
Bolt Circle (in) 6.130
MOQ 1
Weight (lb) 25.00
Part Number Cross Reference 4545 3., 4545.3, TL4545 X 3.00, 20353041, 4545x3kw, TL45453, 4545-3, N/A
Set Screw Quantity 3
