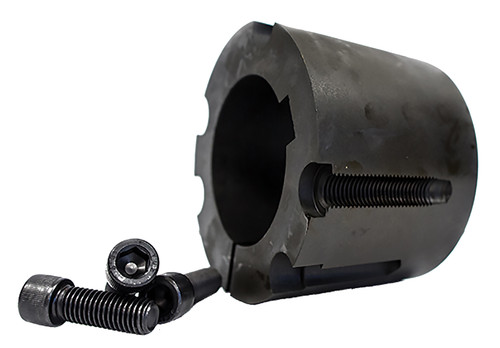

5040x3, TL Bushing

5040x3

5040x3, TL Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries 5040x3 Bushings in a large variety of bore sizes from stock.

Product Number	5040x3
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore (in)	3.000
Bore Description	3 Inch Finished Bore
Min. Bore (in)	2.5
Unit System	Inch
Bushing	5040
A (in)	7.000
B (in)	4.000
C (in)	10.500
D (in)	6.720
G (in)	37
Torque Capacity (lb/in)	126,000
Bolt Circle (in)	6.720
MOQ	1
Weight (lb)	35.60
Part Number Cross Reference	5040 3., 5040.3, 5040 3, TL5040 X 3.00 BUSHING, 21024506, 5040 X 3-KW BUSHING, TL50403, 5040-3, 5040X3, 5040x3, 114874, 5040x3
Set Screw Quantity	3
