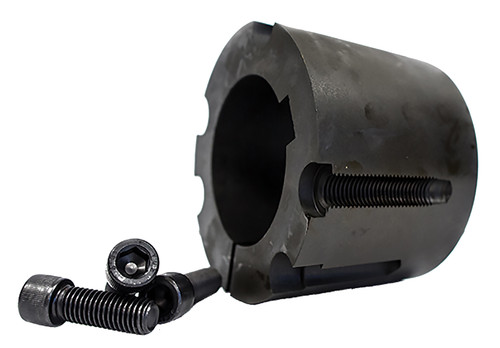

5040x5, TL Bushing

5040x5

5040x5

5040x5, TL Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries 5040x5 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number 5040x5
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 5 Inch Finished Bore
Min. Bore (in) 2.500
Unit System Inch
Bushing 5040
A (in) 7.000
B (in) 4.000
C (in) 10.500
D (in) 6.720
G (in) 37
Torque Capacity (lb/in) 126,000
Bolt Circle (in) 6.720
MOQ 1
Weight (lb) 20.50
Part Number Cross Reference 5040 5., 5040.5, TL5040 X 5.00 BUSHING, 20960511, 5040x5kw, TL50405, 5040-5, 114900, 5040x5
Set Screw Quantity 3

Comparable to: 5040 5., 5040.5, TL5040 X 5.00 BUSHING, 20960511, 5040x5kw, TL50405, 5040-5, 114900, 5040x5
