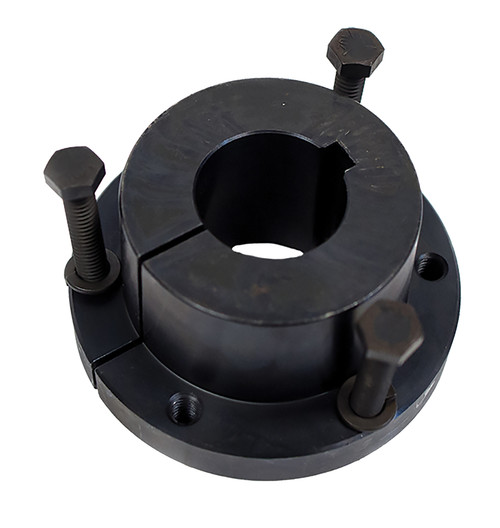

Picture shown may not be representative of actual product

Fx2-1/16

Tulsa, Oklahoma: 0
La Porte, Indiana: 11

Need more than what's available in one location? Please Contact Us.

(No reviews yet) Write a Review

SKU:: Fx2-1/16
UPC:: 00195057286870
Weight:: 14.00 LBS
Bulk Pricing:: Buy in bulk and save
Large Product Image:: https://bbman.blob.core.windows.net/resources/Production/Product/SKx1-3_8.jpg
Weight Packaged:: -
Gates UPC:: -
Ametric:: F.2-1/16
Bando:: F X 2-1/16
Carlisle:: F-2 1/16
Contitech Part Number:: F-2 1/16
Contitech Product Number:: -
Dodge Part Number:: F X 2-1/16
Dodge Description:: F X 2-1/16-KW BUSHING
Maska:: FX2-1/16
Gates Part Number:: F 2.1/16
Goodyear:: F-2 1/16
HAAS:: -
Neuman No Dash:: -
Neuman With Dash:: -
ITW:: -
Jason:: F-2-1/16
Martin:: F 2 1/16
Masterdrive Part Number:: F2.1/16
Masterdrive UPC:: 806372016775
Maurey:: F X 2-1/16
Maurey Old:: F X 2-1/16
McMaster Carr:: -
Mitsuboshi:: -
Misumi:: -
Motion Industries MINO:: -
MSC:: -
On Drives:: -
Optibelt:: F 2 1/16
PIC:: -
Plastok:: -
Powerdrive:: F-2-1/16
PTI:: -
Rainbow:: F-2-1/16
Regal Item Number:: 1073816
Regal Part Number:: F 2 1/16
SIT:: -
Stock Drive:: -
SDP No Space:: -
TB Woods:: F2116
Torque Transmission:: 40000
Transdev:: -
Image Alt Text:: Fx2-1/16
Unlaub Item Number:: -
WM Berg:: -
York:: -
Zoro:: -
Grainger BB:: 813C55
Grainger Other:: -
A (in):: -
B (in):: -
C:: -
D:: 6.625 in
D small:: -
D large:: -
E:: 2.813 in
Gates Product Number:: -
F:: 2.5 in
G:: -
H:: -
L:: 3.625 in
UST:: F-2A
M:: -
T:: -
U:: -
V:: -
W:: -
X:: -
Y:: -
Datum C:: -
Maximum RPM:: -
Bore (in):: -
Bore (mm):: -
Face Width {in}:: -
Face Width (mm):: -
Keyway Depth (in):: -
Keyway Depth (mm):: -
Keyway Height (in):: -
Keyway Height (mm):: -
Keyway Width (in):: -
Keyway Width (mm):: -
Torque_Capacity:: 40000
Overall Length:: -
Bushing Installation:: https://bbman.blob.core.windows.net/resources/Production/Documentation/QD%20bushing%20installation%20and%20removal.pdf
Drive Alignment Guide:: -
General Characteristics:: -
Keyway_Tolerances:: -
Part_Number_Explanation:: -
Tru_Motion:: -
Flange Material:: -
Construction:: -
Reinforcement:: -
Insert Material:: -
Product Schematic:: -
Type:: -
Bushing:: F
Bolt Circle:: 5.625
Cap Screw:: 3 - (9/16-12 x 3-5/8)
Sheave Type:: -
For Belt Type:: -
Set Screw Quantity:: -
Set Screw Size:: -
Cap Screw Quantity:: 3
Keyway Description:: -
Flange Description:: -
Hub Configuration:: -
Cap Screw Size:: 9/16-12 x 3-5/8
Item Status:: Catalog Part
Belt Comment:: -
Belt Type:: -
Bearing:: -
Webbed:: 0
Arms:: -
Bushing Note:: -
Arm Type:: -
Country of Origin:: China
Bore:: 2-1/16 Inch Finished Bore
Website Brand:: Powerhouse Timing
Part Weight:: 14 lb
Material:: Steel
Finish:: Black Oxide
Bore Type:: Finished Bore

Qty Price per Item

1-9
10-24
25-49
50-99
100+

$167.73
$140.05
$116.94
$97.65
$92.57

Ordering a larger quantity, contact us for volume discount.
